Fire Alarm Supervisory vs Trouble: What the Panel Is Really Telling You

You get that call at 3 a.m. or smack in the middle of a busy day: "The fire alarm panel is beeping like mad, but no alarm, no horns, nothing. Tenants are losing it. How do we shut this up?"

The beeping itself isn't the crisis. But ignore what's behind it, and you could be staring down a real emergency later.

Fire alarm systems throw three main signals at you: alarm, supervisory, and trouble. Understanding fire alarm supervisory vs trouble signals matters because they all make the panel chirp and light up, so people mash them together as "the dumb thing acting up again." They're not the same at all, and confusing them leads to expensive mistakes, like brushing off a serious impairment or having the handyman start messing with wiring he has no business touching.

Here's the straight talk on what each one means and what you should actually do about it.

Alarm: Active Emergency

Straightforward: the system detects something bad right now. Smoke, heat, pull station yanked, sprinkler flowing water, whatever the system is set to catch. Horns and strobes blast (usually building-wide or zoned), and if monitored, it typically transmits straight to the fire department or central station.

Supervisory: Fire Protection Equipment Off-Normal

The panel is keeping an eye on another fire protection component, and that component isn't in its normal state. It's not detecting fire. It's watching something designed to fight or contain one if fire shows up.

Common supervisory signal triggers that most building managers recognize:

• 01Sprinkler valve shut or partially closed (tamper switch tripped)
• 02Low air pressure on dry-pipe sprinkler systems
• 03Fire pump issues: off, failed start, phase loss, running unexpectedly
• 04Kitchen hood suppression with low cylinder pressure or fusible link problems
• 05Special hazard systems (foam, clean agent) reporting off-normal conditions

Then there are the less obvious ones that pop up in the field:

• 01Low fuel in emergency generators feeding fire pumps
• 02Abnormal temperatures in pump rooms (too hot or cold, affecting equipment performance)
• 03Smoke damper test failures signaling the damper won't close properly during a real event
• 04Low temperature switches in unheated areas where pipes could freeze
• 05Water tank levels in standpipe systems dropping below minimum
• 06In hospitals or labs, blood bank fridges going out of temperature range if tied into the life safety system

Supervisory signals stay local most of the time: piezo beep at the panel, yellow or amber light, screen message. No evacuation tones. But shrugging it off is a mistake. A supervisory signal can mean sprinklers won't flow because a valve is shut, or suppression won't discharge when needed. The alarm detection side might be working perfectly, but actual fire protection fails when it matters.

Trouble: Fire Alarm System Impaired

A trouble signal means a fault inside the fire alarm system itself. Detection, notification, power, wiring, communications, or panel internals have gone wrong.

The usual suspects:

• 01AC power lost (system running on batteries only)
• 02Batteries dying, failed, or charger malfunctioning
• 03Open or short circuits (wires cut, loose, or broken somewhere in the loop)
• 04Ground faults (wiring grounding out from moisture, pinched cables, or bad splices)
• 05Addressable devices dropping offline (wrong address, physical damage, renovation interference)
• 06Communication module failures or SLC shorts

Rarer causes that catch people off guard:

• 01Rodent damage to wiring (happens more than you'd think in warehouses and older buildings)
• 02Humidity spikes causing corrosion in older panels, especially in coastal Florida buildings where salt air eats terminations slowly
• 03Dust buildup in detectors leading to sensitivity drifts that trigger faults
• 04Software glitches in certain panel models that need a full power cycle, but only performed by a qualified technician
• 05Nearby lightning strikes inducing voltage spikes without visible physical damage, quietly degrading a communicator module over weeks
• 06HVAC contractors snagging a loop wire while rerouting ducts, creating an open that only shows under load

Like supervisory, trouble signals produce a local beep and amber light, no horns. But it means the system is hurt: it might miss a detection event, fail to notify occupants, or fail to transmit to the monitoring station. That's not minor.

Why Fire Alarm Supervisory vs Trouble Signals Get Confused

Building managers and tenants mix these up constantly. Here are the patterns we see over and over:

• 01"No horns or strobes, so it's no big deal." Wrong. Supervisory and trouble signals almost never trigger building notification. The panel is yelling quietly, but it's still yelling.
• 02"I acknowledged it, so it's gone." Acknowledging silences the beep temporarily (often for 24 hours). A reset clears momentary glitches. If the underlying fault persists, the signal returns. Acknowledging is not fixing.
• 03"Supervisory is less serious than trouble." Not necessarily. A closed sprinkler valve (supervisory) is catastrophic if there's a fire. A minor ground fault (trouble) might be annoying but fixable. Severity depends entirely on what's impaired and how long it stays that way.
• 04"I'll check the wires, reset the valve, or swap the battery myself." Hard stop. Fire alarm systems are regulated life-safety equipment. Unauthorized tinkering can disable protection, violate fire codes, void system listings, and create enormous liability. Devices, circuits, modules, power supplies, and programming: licensed fire alarm contractor only.
• 05"The beep pattern tells me exactly what's wrong." Beep patterns vary by manufacturer (Simplex, Notifier, Silent Knight, Honeywell, Edwards), model, and configuration. They're unreliable for diagnosis. The panel's display text is the source of truth.

What Modern Fire Alarm Panels Display

Addressable fire alarm panels manufactured in the last 15 to 20 years give you solid diagnostic detail for every event:

• 01Signal type: ALARM, SUPERVISORY, or TROUBLE
• 02Point or zone identification: device address (e.g., Loop 3, Device 47), zone number, or module ID
• 03Location label programmed during installation: "Main Lobby North Wall" or "Boiler Room Valve 2"
• 04Time and date stamp for every event
• 05Event count if multiple signals are active ("1 of 4")

Supervisory Signals: What They're Actually Watching

Supervisory signals typically point outward to systems the fire alarm panel monitors, not to the panel itself. They're watching the readiness of other fire protection equipment.

Tamper switches on sprinkler valves are the most common source. A valve gets closed after service work, someone bumps a handle, or a contractor shuts one and forgets to reopen it. The tamper switch reports the position change to the panel immediately.

Dry-pipe systems generate supervisory signals when air pressure drops from compressor failures or slow leaks. Fire pumps report phase loss, over-temperature conditions, or unexpected running. Kitchen hood systems flag low suppression agent pressure or fusible link problems.

NFPA 72 allows supervisory monitoring of certain non-fire-emergency but critical equipment. In hospitals, that can include blood bank refrigerators tied into life safety monitoring. In buildings with dedicated fire pump generators, low fuel level triggers supervisory. These less common signals catch facility teams off guard because the connection to fire protection isn't immediately obvious.

Trouble Signals: Common Causes and Hidden Problems

AC power loss is the most urgent trouble condition. Once AC is gone, the system runs on standby batteries. NFPA 72 requires batteries to support 24 hours of standby plus a short alarm period. If the batteries are old, partially failed, or undersized, that window shrinks fast. Low battery trouble signals often trace back to aging cells (typical battery life is 3 to 5 years), excessive charge/discharge cycles, or corroded terminals.

Ground faults are the sneaky ones. Moisture from rain, mop water, roof leaks, or renovation work finds its way into conduit or junction boxes and creates a path to ground. These faults come and go with humidity, vanish when a technician shows up, and return three days later. In coastal Florida buildings, salt air accelerates corrosion on wire terminations, creating slow-building ground fault conditions that take months to become obvious.

Communication loss often appears after drywall work or IT cabling changes near the fire alarm communicator. Opens and shorts from construction activity, rodent damage, or water intrusion round out the most frequent trouble sources. Post-renovation recurring troubles almost always trace back to other trades disturbing fire alarm wiring, moving devices without updating the panel map, or pinching cables behind new walls.

Monitoring, Central Station, and Dispatch

Many fire alarm systems transmit supervisory and trouble signals to a central monitoring station, not just alarms. How the station responds depends on your monitoring contract, local authority having jurisdiction (AHJ) rules, and system programming.

Alarm signals usually trigger fire department dispatch. Supervisory and trouble signals? The response varies: it could be a keyholder notification, automatic service dispatch, or just a logged event. Proprietary systems at large commercial chains often have on-site monitoring rooms, while most smaller buildings use remote central stations. Don't assume you know the response protocol. Check your monitoring agreement, talk to your monitoring company, and keep your fire alarm contractor's number current.

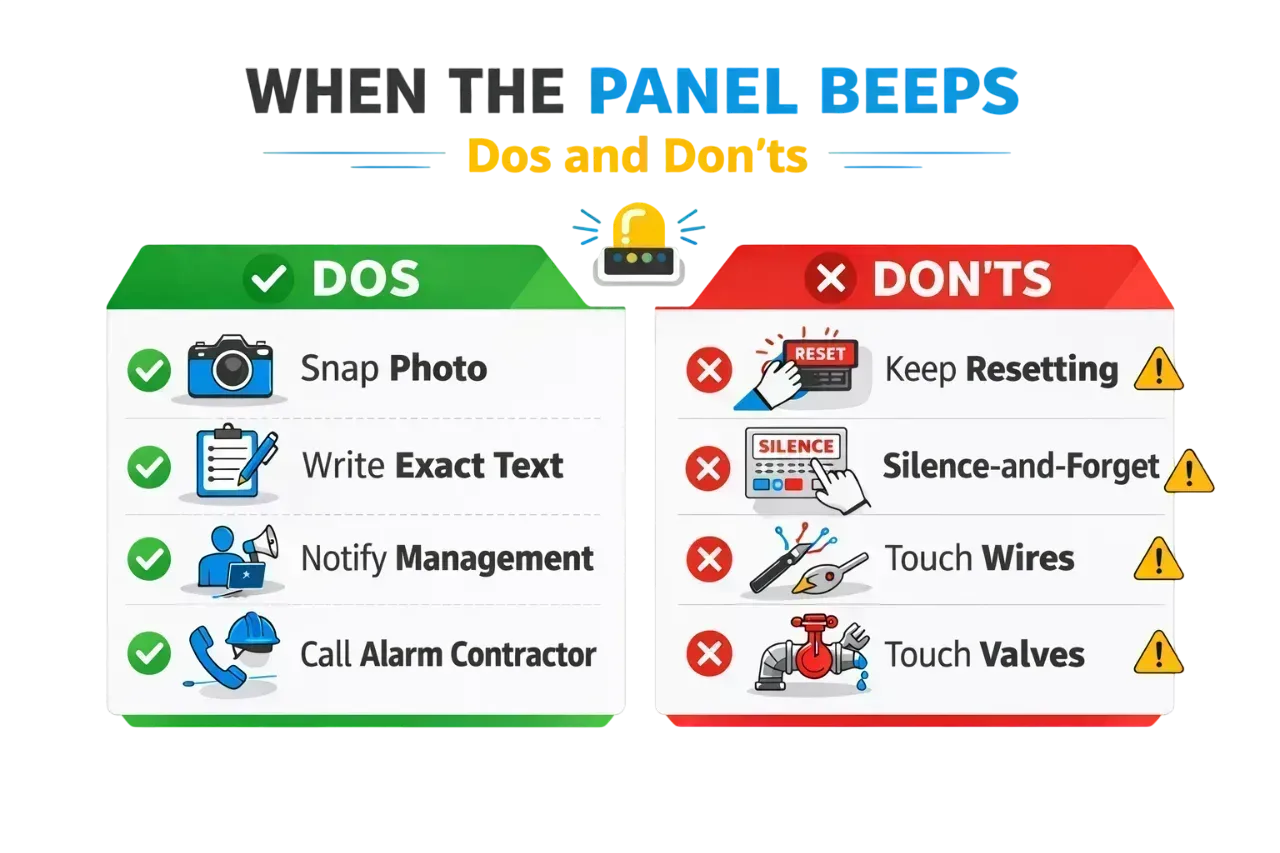

What to Have Ready Before You Call

When you call your fire alarm service contractor, the more detail you provide upfront, the faster and cheaper the resolution. Have this information ready:

• 01Exact screen wording (a photo of the display is even better)
• 02Point address, zone number, or device ID shown on the display
• 03Location text from the panel (e.g., "3rd Floor East Corridor")
• 04When the signal first appeared
• 05Whether the condition is steady or intermittent
• 06Recent building activity: storms, construction, ceiling tile work, sprinkler service, plumbing, HVAC modifications, or water leaks

This information is gold for technicians. It can turn a two-hour troubleshooting visit into a 30-minute targeted repair.

Patterns From the Field

• 01Ground faults thrive on moisture and construction dust, then vanish when you're watching. Intermittent ground faults are the single most frustrating trouble condition in fire alarm service work.
• 02Addressable panels pinpoint problems: "Smoke Detector, Loop 4, Device 12, 3rd Floor East Corridor." Conventional panels give vague zone info: "Zone 4 Trouble." The troubleshooting gap between these two system types is enormous.
• 03Post-renovation recurring troubles almost always trace back to disturbed wiring, unmapped device relocations, or pinched cables from other trades working near fire alarm infrastructure.
• 04Deferred maintenance kills batteries, escalates wiring faults, and turns small problems into panel-wide headaches. Routine testing and inspection prevents most chronic trouble conditions.
• 05In one real case, a building had recurring communication troubles traced to a nearby lightning strike that induced voltage spikes without visible damage, slowly degrading a communicator module over weeks.

The Bottom Line

A fire alarm panel beeping on supervisory or trouble isn't an annoyance to silence. It's alerting you that protection is reduced. Either the alarm detection system itself is compromised, or the sprinklers and suppression equipment it watches aren't ready.

Stay level-headed. Read the display. Grab the details. Get qualified professionals involved quickly. That's how small problems stay small.
