What Is an Overhead Paging System?

What Is an Overhead Paging System, and When Does Your Business Need One?

An overhead paging system is the network of speakers, amplifiers, and controls that lets one person make a live announcement heard across a building. Page a forklift driver at the far dock, call a manager to the front, or signal a shift change, all without walking the floor or dialing individual phones. The reason these systems exist is simple: in a busy building, a raised voice does not carry. OSHA notes that many industrial spaces run loud enough to require a hearing conservation program once worker exposure reaches an 85-decibel average over eight hours. A page competing with that kind of background has to be engineered, not just installed. This guide covers what an overhead paging system is, when a business needs one, how analog and IP options differ, and how paging ties into the phone system you already own. It pairs with our overview of commercial paging and sound masking systems, and it is the opposite tool from office sound masking, which raises ambient sound to make speech harder to hear rather than easier.

Paging, Intercom, and PA: Clearing Up the Confusion

These three terms get used as if they mean the same thing. They do not. Paging is a one-way broadcast from an operator to a zone or the whole building, with no reply path. An intercom is a two-way conversation between two points, like a door station and a front desk. A PA, or public address system, is the broader category of amplified announcement audio that paging falls under. The practical line is the direction of the audio. If you need to talk to a room and hear nothing back, that is paging. If you need a back-and-forth, that is intercom. Some systems add talkback, a limited return path that sits between the two.

When Does a Business Actually Need an Overhead Paging System?

You need one when finding people or reaching a group by voice is slowing the operation down or creating a safety gap. A warehouse loses minutes every time a supervisor walks the floor to track someone down. A school has to reach every classroom for a schedule change or a drill. A clinic needs to call a code to staff without alarming patients. A retailer wants associate calls and background music running on the same speakers. The building type sets the speaker and the zoning, not the other way around.

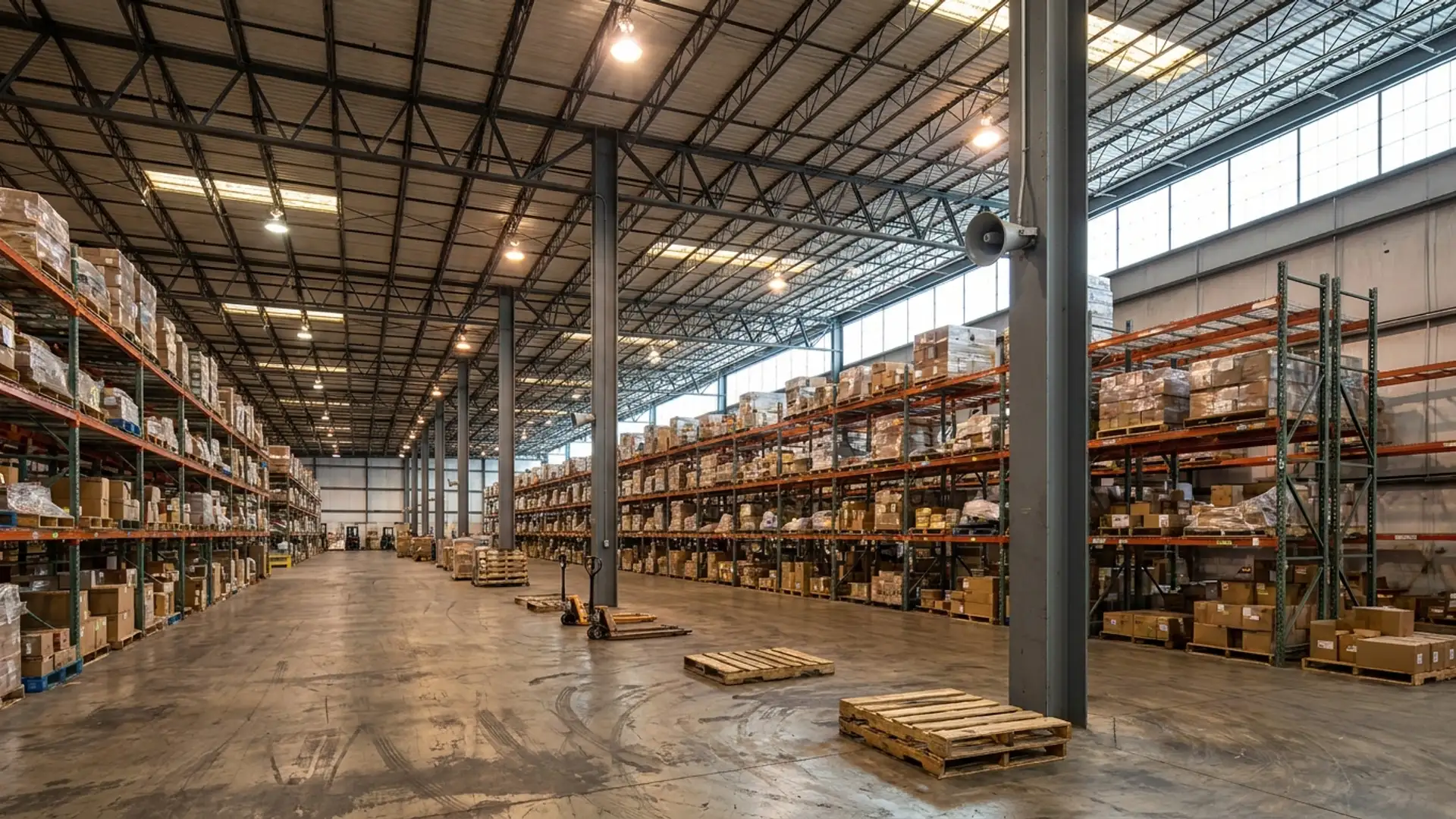

• 01Warehouse and distribution: dock calls and shift announcements over 75 to 95 dB of ambient noise. Horns, a handful of large zones.
• 02K-12 school: bells, daily announcements, and lockdown all-call. Ceiling speakers in rooms, horns outdoors, zones per wing.
• 03Healthcare and clinics: STAT and code pages audible to staff without disturbing patients. Ceiling speakers, tight zoning.
• 04Retail: associate calls, promotions, and background music. Ceiling speakers on the floor, horns in the stockroom.
• 05Office: reception pages and all-staff announcements. Discreet ceiling speakers grouped by floor or department.
• 06Multi-building campus: cross-building all-call plus local zones. Reach is handled by the network, not one big amplifier.

Analog vs IP Paging: How the System Gets Wired

Under the hood, an overhead paging system is wired one of three ways. Traditional analog runs on a 70-volt line: one amplifier drives many speakers over thin, inexpensive cable, with each speaker tapped for a set wattage. IP paging puts each speaker on the data network as its own device, powered and fed over a single Cat6 cable through a PoE switch. The third option is a hybrid retrofit, which keeps your existing analog speakers and adds a small network adapter in front of them. Most buyers do not need to decide this on theory. The building you already have usually points to the answer.

Connecting Overhead Paging to Your Phone System

This is where a lot of buyers get stuck, and where the retrofit option matters most. If you already have overhead horns and you move to a modern cloud phone system, you rarely have to rip the speakers out. A SIP paging adapter registers to the phone system the same way a desk phone does, then feeds your existing amplifier. Dial a zone code from any extension and the page goes out. On Intermedia Unite, the platform TSS USA installs, that path is documented through its bring-your-own-device program, with published setup guides for the common Algo and CyberData paging adapters. For new construction, network speakers register directly as extensions instead. One caution on multi-building sites: multicast paging stays inside a single network segment and will not cross between subnets without extra routing, so paging across separate buildings is usually handled with SIP page groups.

Getting the Coverage Right

The most common reason a paging system disappoints is not the brand. It is coverage. To be understood, a page should land roughly 10 to 15 dB above the background noise in the space, measured rather than guessed. That is why a warehouse needs high-output horns and an open office is fine with ceiling cones. Wattage is not the lever people assume it is: doubling an amplifier's power adds only about 3 dB. The bigger gains come from putting the right speaker in the right spot. On the install side, the classic failure is mis-tapping speakers on a 70-volt line. AtlasIED's technical guidance is blunt about the rule: total speaker wattage on the line must stay under the amplifier's rated output, or the amp runs hot and fails early. The same return-air ceilings that carry your plenum-rated cable also dictate which speakers are allowed above the tile.

One Note on Emergency Alerts

A routine overhead paging system, the kind used for announcements, bells, and background music, is a business tool, not a life-safety system. It only becomes a code-governed emergency communication system when it is engineered and listed for that role. The bar is higher there: emergency voice has to be intelligible, not merely audible, and accessibility rules expect audible alerts to be paired with visible ones. The U.S. Access Board notes that fire alarm systems must provide both audible and visible alarms that comply with NFPA 72. If your goal is day-to-day paging, that complexity does not apply to you. If you think you may want emergency notification later, say so up front, because the design choices differ from the start.
