Hospital Pharmacy

Hospital pharmacies are a different animal than standard healthcare spaces. The camera count alone tells you that — pharmacies require significantly more surveillance coverage than a typical hospital floor. Controlled substances, regulatory requirements, and chain-of-custody documentation drive that requirement.

TSS installed about 200 CommScope Systimax Cat6A drops in this pharmacy renovation inside an active St. Petersburg hospital. Redundant 24-strand TerraSPEED singlemode fiber connects back to the hospital data center. Composite cable for access control, WAP installation throughout, and a heavy camera infrastructure that's specific to pharmacy security requirements.

Austin Industries served as the general contractor on-site, managing the overall construction. TSS was contracted directly to the hospital customer, but we coordinated daily with Austin's team on scheduling, access, and trade sequencing. Good GCs make a real difference on hospital projects, and Austin kept communication moving between trades.

The ceiling in this renovation was the biggest challenge. Existing high-voltage electrical conduit was already packed into the ceiling space. At certain points, maintaining the required separation distance between data cable and electrical conduit was nearly impossible without careful routing. When those distances collapse, you get real interference risk — not theoretical, real. Quality cable and proper installation methods are what keep signal integrity where it needs to be in that kind of environment. The EC on this project was cooperative and accommodating, which made a hard situation workable.

About 200 CommScope Systimax Cat6A drops cover this pharmacy. That number reflects the heavy camera requirement — pharmacies need more surveillance points than standard healthcare spaces due to controlled substance handling and regulatory compliance. Every camera location got Cat6A, same as workstations and access points.

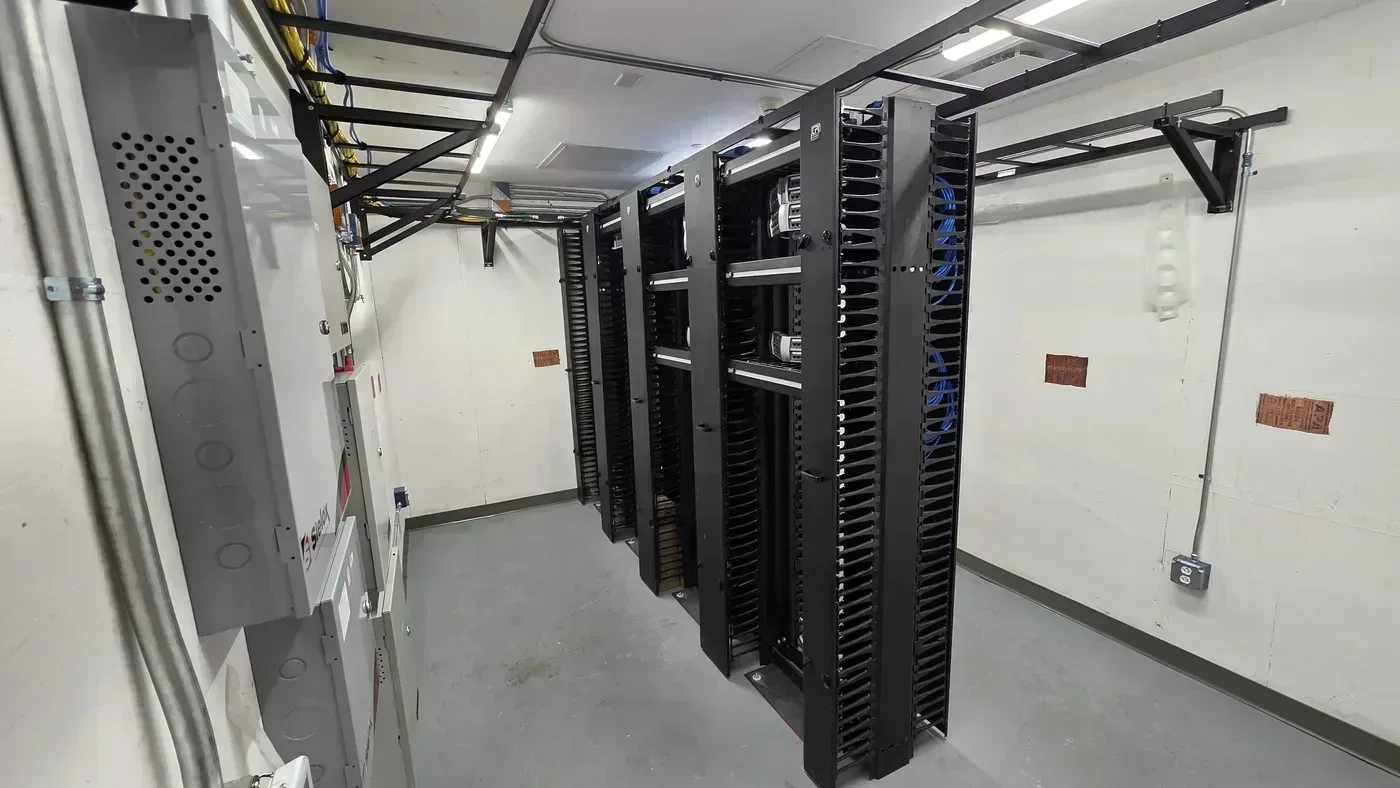

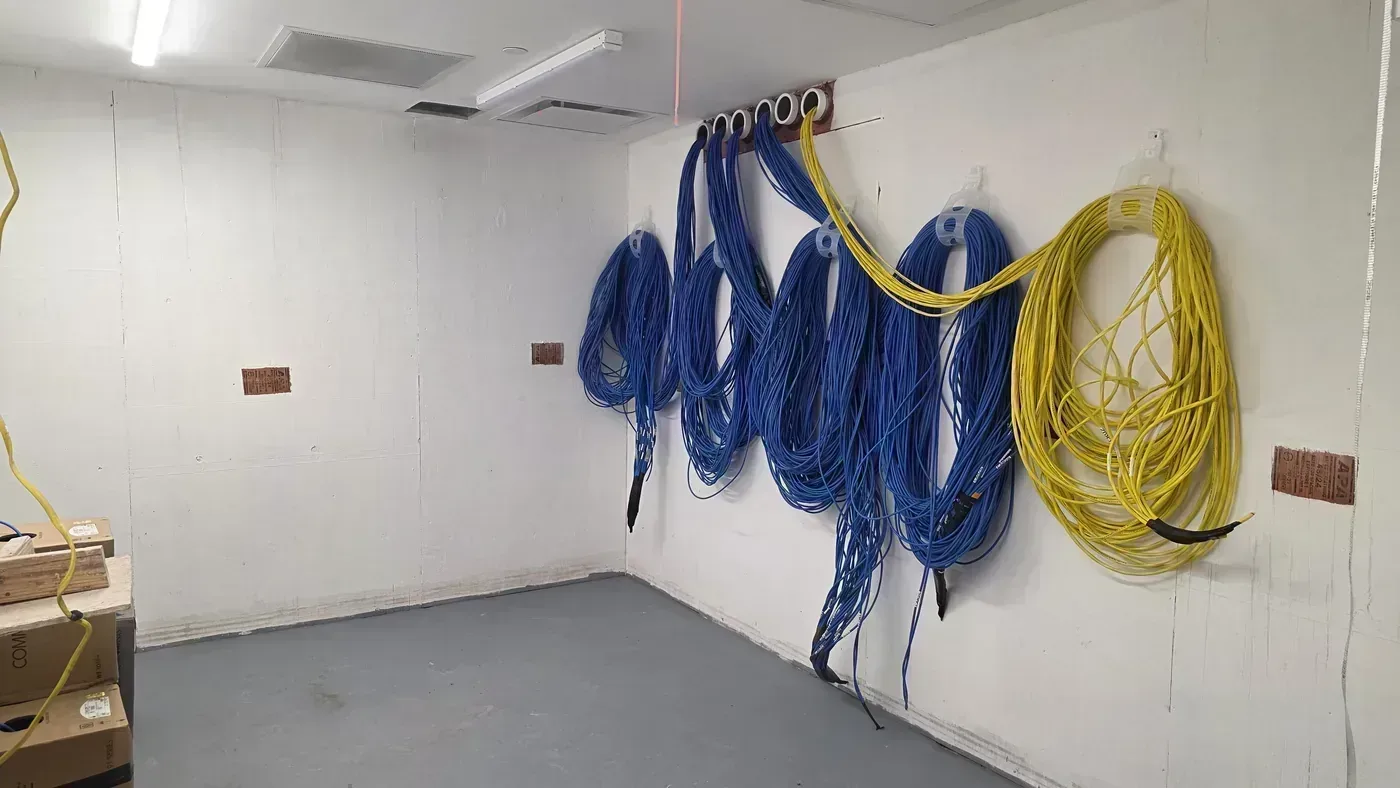

Redundant 24-strand TerraSPEED singlemode fiber ties back to the hospital's main data center. Composite cable runs to every access-controlled door. WAPs throughout the space. The complete TDR was built by TSS — racks, ladder rack, cable managers, Systimax patch panels, fiber enclosure, all terminations.

Cat6A matters in this environment specifically because of the electrical interference challenge. When you're routing data cable through a ceiling already packed with high-voltage conduit, the cable's shielding and construction quality directly affect performance. Systimax Cat6A handles those conditions better than budget alternatives.

Austin Industries ran the construction site as GC. Their project management kept trade coordination organized, which is critical inside an active hospital. TSS coordinated with Austin's team daily on what areas were accessible, which trades were working where, and when we could pull cable without conflicting with mechanical, electrical, or plumbing work.

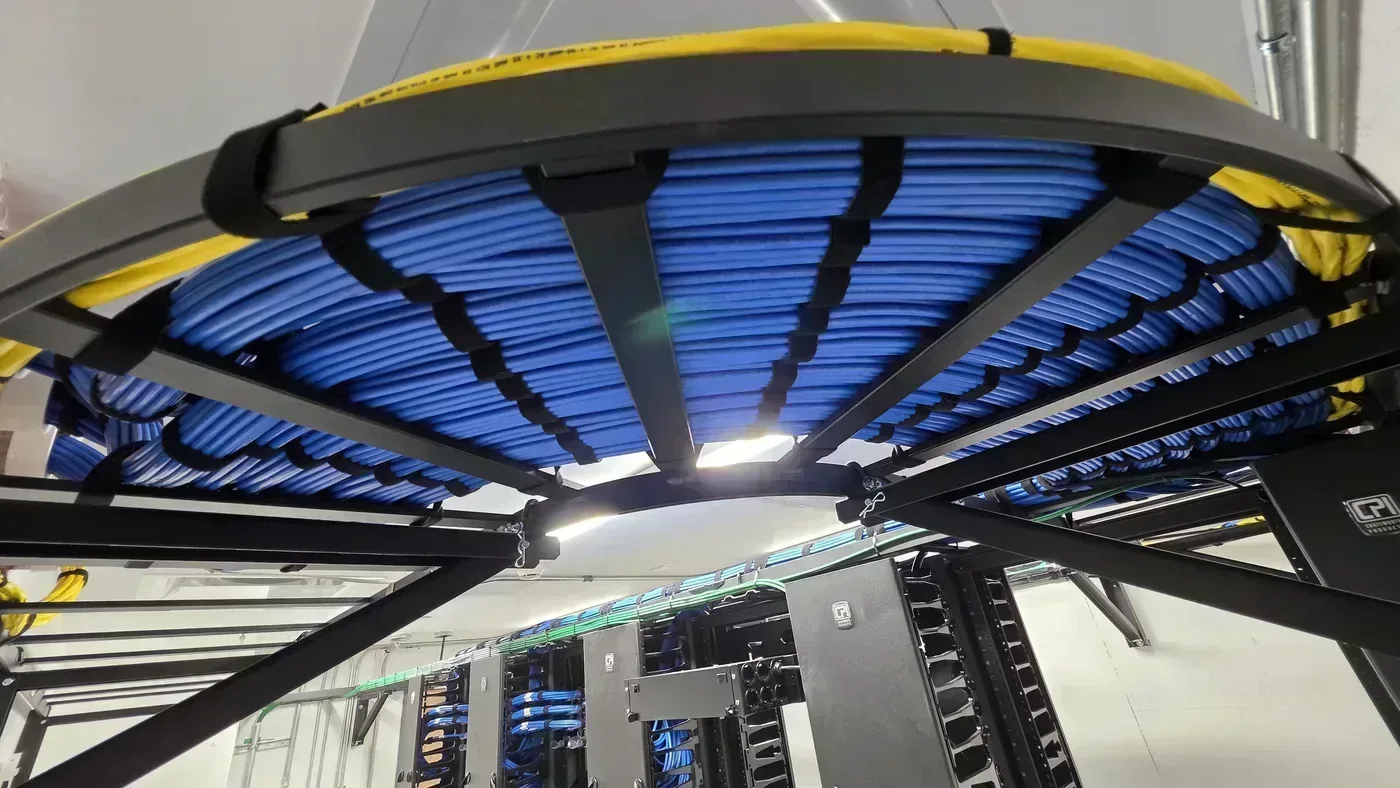

The ceiling was the primary obstacle from day one. Existing electrical conduit filled the overhead space before we arrived. Our routing had to weave around it while maintaining separation distances required by NEC and CommScope installation methods. At some points, the only viable path put data cable closer to high-voltage conduit than you'd prefer. Correct support, proper cable type, and disciplined routing made the difference between a system that passes testing and one that doesn't.

The project took one to two months. For a 200-drop pharmacy renovation inside an active hospital, that's a reasonable timeline. The EC was cooperative throughout, which made ceiling space negotiations much easier. Not every project works that way — when the EC pushes back on shared ceiling space, everyone loses time.

Every Cat6A drop was tested with a Fluke DSX-8000 to CommScope Systimax channel requirements. Given the electrical interference environment in this ceiling, testing wasn't just a warranty checkbox — it was validation that our routing and separation methods actually worked. Every drop passed.

Fiber was tested with CertiFiber Pro, both directions, insertion loss and return loss documented. Full PDF test results, cable schedules, and as-builts were delivered to the hospital's IT department and submitted to CommScope for the warranty package.

TSS ran a focused crew on this pharmacy renovation. All W2 employees, OSHA trained, with hospital-specific safety orientation completed before any work started. The lead installer holds CommScope Systimax certification.

Hospital projects require a different mindset than commercial construction. You're working in a building where patients are being treated in adjacent spaces. Noise, dust, and access restrictions are tighter. Our crew maintained hospital safety protocols and respected the facility's operational requirements throughout the project.

CommScope Systimax 25-year extended warranty covers this installation. After all terminations and testing were complete, CommScope conducted an on-site inspection to verify compliance with their installation methods. Given the challenging ceiling environment, that inspection confirmed our routing decisions held up to Systimax standards.

The full certification package was submitted — Fluke DSX test results, CertiFiber fiber tests, cable schedules, TDR as-builts. CommScope reviewed and issued the 25-year warranty directly to the hospital. That warranty transfers with the building, not with TSS.

ANSI/TIA-568 compliance on all copper and fiber installations. NEC separation requirements between data and electrical systems were a primary concern on this project and were maintained throughout. BICSI best practices for cable support, routing, and termination.

Hospital safety protocols applied to every work area. OSHA compliance was baseline. CommScope Systimax installation methods governed every termination and cable route. NFPA 70 firestopping at all rated penetrations. Austin Industries enforced builder safety requirements on top of standard hospital protocols.
