Commercial Data Cabling

Modern businesses rely on more than just fast internet. They rely on the unseen infrastructure: commercial data cabling. This is the organized backbone connecting every device on your network and powering everything from phones and Wi-Fi to access control, surveillance, and industrial automation. A well-executed cabling system sets businesses up for steady growth, minimal downtime, and future flexibility.

This guide dives into what commercial data cabling is, how it's installed, what it costs, and why quality matters. Let's unpack it.

What Is It?

Commercial data cabling is the network of low-voltage cables and structured wiring that connects your devices (PCs, phones, Wi-Fi access points, video systems, networked machines) across your facility. It spans everything from fiber backbones to individual workstation drops.

Structured Cabling Explained

Think of structured cabling as the highways that allow information to travel around your site. It's a disciplined, hierarchical system of cabling based on standards like ANSI/TIA-568, designed to support voice, data, video, and PoE devices. Unlike ad hoc wiring, structured systems are uniform, labeled, scalable, and maintainable.

Commercial data cabling is called many different things: structured cabling, network wiring, data drops, or computer wiring. What it's called is usually dependent on who is making the reference, whether a solo entrepreneur or an enterprise IT manager. No matter what you call it, the goal should be the same: reliable communication across your infrastructure.

Why Network Cabling Matters

Cheap or sloppy cabling creates network issues and physical headaches: packet loss, connectivity drops, Wi-Fi interference, or device failures, coupled with unlabeled jacks and messy IDFs. On the flip side, properly installed commercial cabling delivers consistent performance, even during peak usage, and reduces downtime, and makes maintenance easier by helping you trace and troubleshoot with confidence.

This isn't a luxury. It's the foundation of predictable, expandable systems.

Types of Data Cabling

Choosing the right type of cabling is vital. Below are the standard options:

Twisted Pair (Cat5e, Cat6, Cat6a)

• 01Cat5e is budget-friendly and still used, but it's being phased out.
• 02Cat6 is the most common today. For just a slight premium over Cat5e, you get gigabit speeds and some headroom.
• 03Cat6a supports full 10 Gbps up to 100 meters and offers improved shielding, making it ideal for PoE-heavy environments or future-ready installations.

For most projects, we recommend Cat6 as the default. Cat6a becomes worthwhile when you anticipate heavy PoE demand or want to be ready for the future.

Fiber Optic

Used primarily for backbone runs, fiber handles long distances, between buildings or across floors, without signal degradation or interference. We often use fiber between IDFs and the MDF or between buildings, occasionally extending provider circuits in multi-story structures.

Coaxial

Less common in new commercial builds but still critical in certain setups. Lots of medical buildings and assisted living facilities still rely on coax for resident/patient room TVs:

• 01RG11 coax often delivers incoming service to distribution racks.
• 02RG6 coax runs from racks to devices like cameras or set-top units.

Shielded vs. Unshielded

• 01UTP (Unshielded Twisted Pair) is fine for most office environments.
• 02STP (Shielded Twisted Pair) is used when electrical interference is a concern (e.g., industrial environments or around heavy machinery).

Key Components of a Structured Cabling System

Let's break down the pieces that comprise full commercial data cabling.

Entrance Facilities

This is where external circuits enter your building: internet service provider lines or WAN connections. It's the main interface before reaching your internal infrastructure.

Backbone Cabling

This links major network points, like equipment rooms, telecom closets, and sometimes between buildings. Backbone runs use Cat6a or fiber for high-capacity traffic.

Equipment Room (MDF)

Also known as the Main Distribution Frame. This room houses core gear: routers, main patch panels, switches, and fiber termination panels. It's the central hub in your network.

Telecommunications Room (IDF)

Intermediate Distribution Frames (IDFs) are closets positioned throughout a building, distributing horizontal cabling to nearby work areas. In multi-floor or campus settings, several IDFs link back to the MDF via backbone cabling.

Horizontal Cabling

This is the actual cable run from an IDF to a user's desk, cameras, or equipment. Typically Cat6, it's capped with wall plates and patch panels in telecom rooms.

Work Area Connections

Where devices plug in. This includes desk jacks, patch panel terminations, and even industrial machine terminations in manufacturing areas.

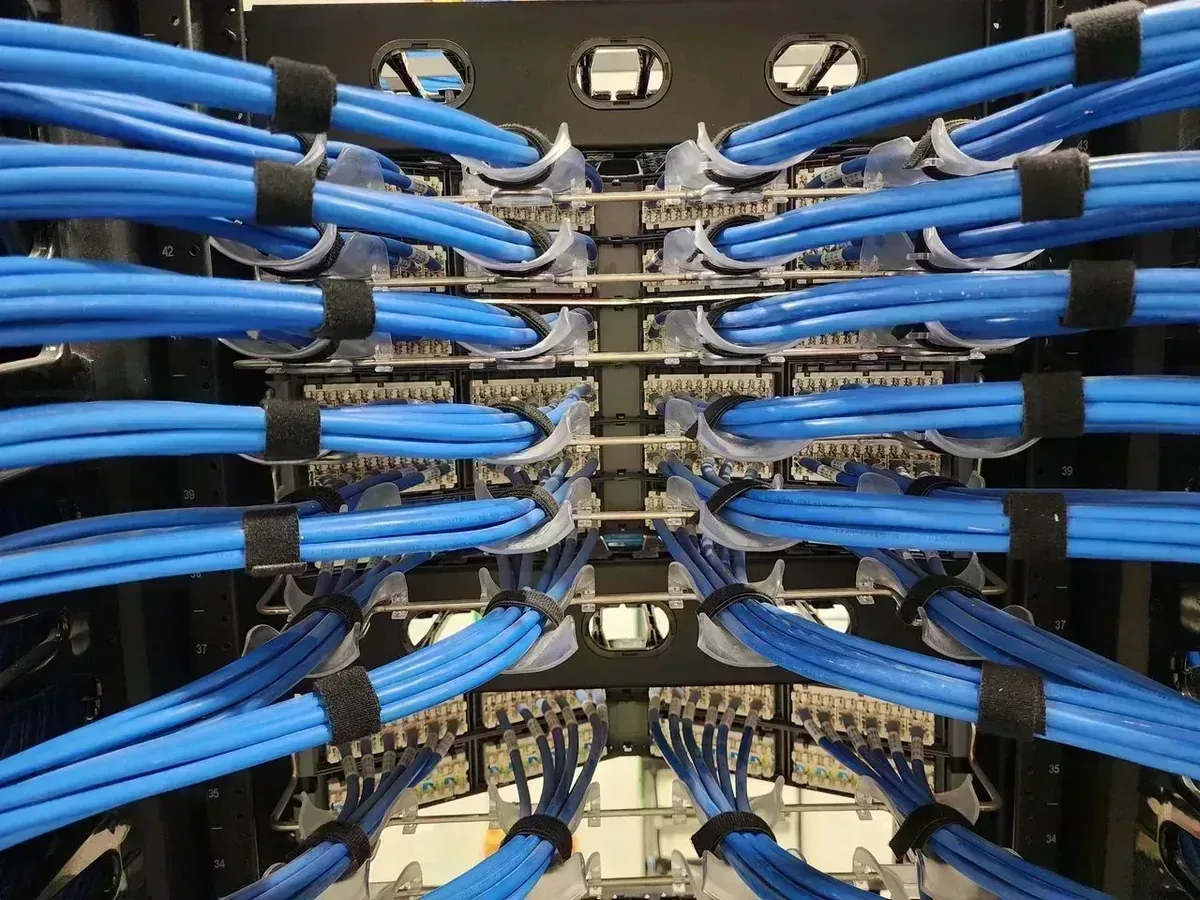

Patch Panels & Cable Management

Professional installations rely on high-quality panels and proper cable routing. Brands like CommScope, Belden, Corning, Leviton, or Panduit are commonly used. Good cable management (Velcro straps, trays, ladder racks) ensures neat, safe, and expandable infrastructure.

Installation Best Practices

How we install matters as much as what we install.

Site Assessment and Design

Never pull cable before assessing. We evaluate ceiling type (drop vs. hard ceiling), building layout, work areas, mechanical paths, conduit access, and points of termination. That determines routing, labor estimates, and materials needed.

Labeling and Documentation

You should never guess what a jack does or where it goes. We label every endpoint, record fiber shelf IDs, and supply an electronic site map with as-built documentation. That can include layout plans, rack elevations, and port-to-jack associations.

Rack Layout and IDF Placement

Installing equipment too tightly leads to overheating and maintenance headaches. We space hardware properly, allow room for future gear, and position IDFs close enough to cable clusters to minimize horizontal run lengths.

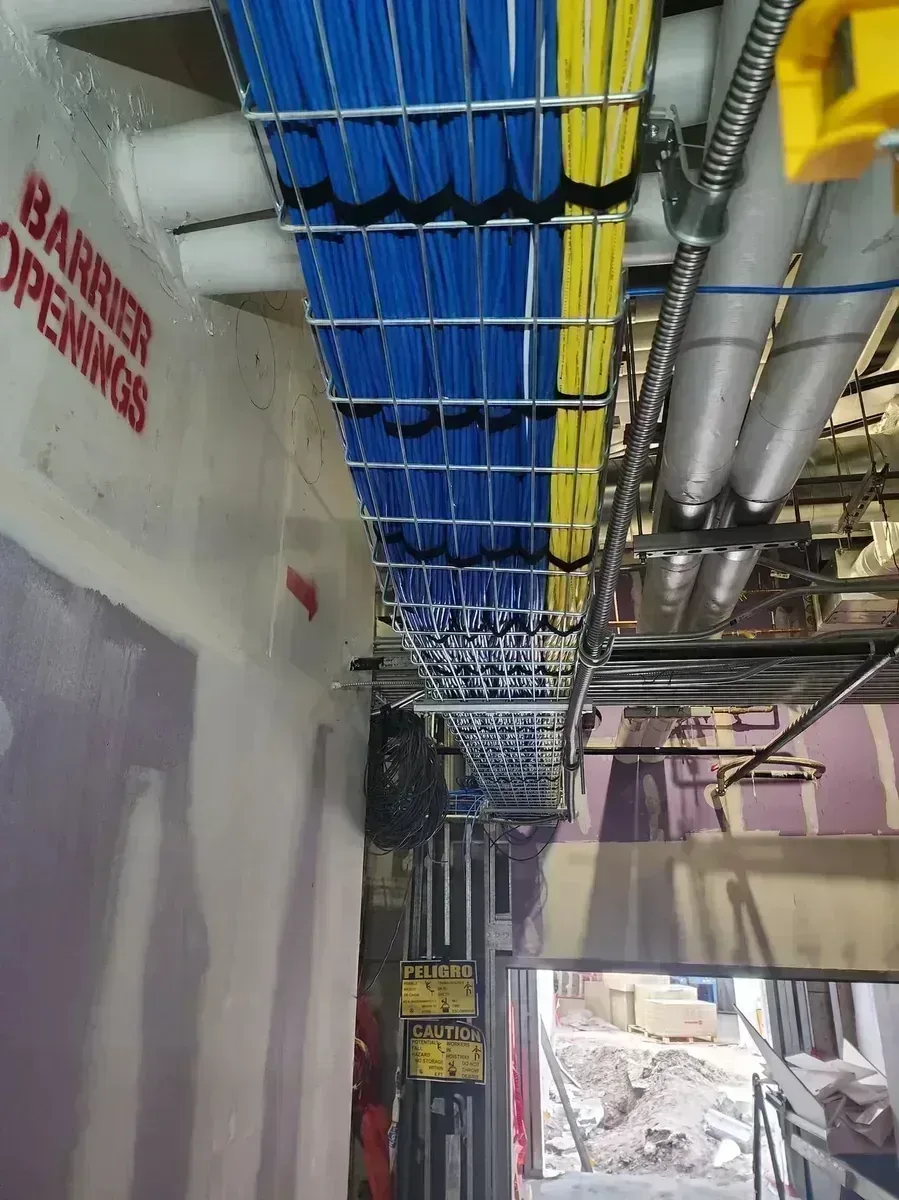

Cable Management Standards

We follow NEC guidelines: maintain correct bend radius, avoid zip ties that damage jackets, support the cable every few feet, and keep cables secured with Velcro. No shortcuts. Every run is clean and correct, even if it's in the ceiling or behind a wall.

Cost Factors in Commercial Cabling

Here's what most affects your project price:

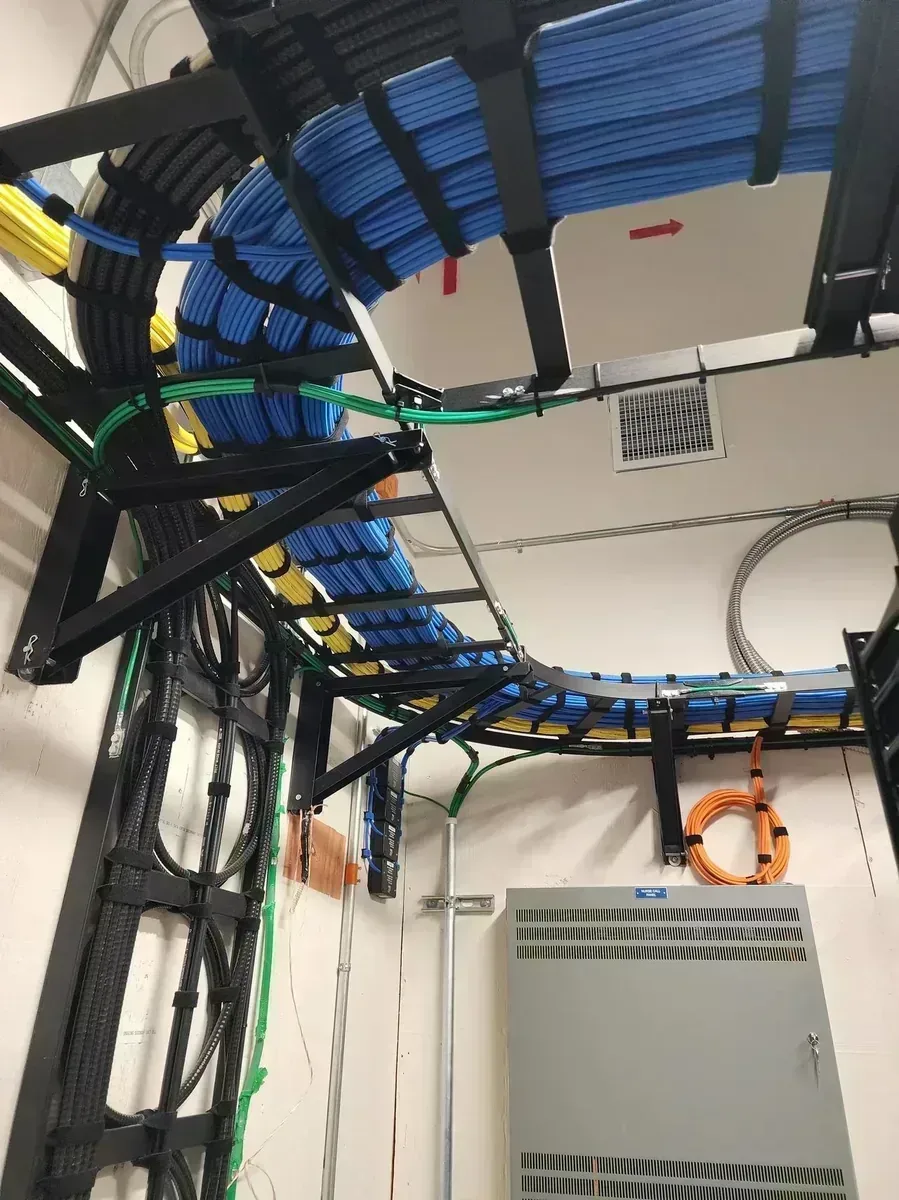

Type of Cables Used

Cat6 vs. Cat6a, shielded vs. unshielded, plenum vs. standard: all affect material cost. Fiber adds significant upfront cost, though it's often necessary.

Size and Layout of the Building

Large campuses, high ceilings, concrete walls, or multi-floor builds complicate routing and hike costs.

Number of Data Drops

Each drop costs money: labor and material. Twenty drops in a small office is straightforward; 200 drops in a foundry is a bit more complicated. We price per drop to reflect complexity.

Labor and Installation Complexity

Short ceilings, tight conduit, retrofits, or interference zones slow crews down and increase labor hours.

Material Quality and Compliance

Using plenum-rated cable in air-handling spaces is NEC-required and higher cost, but skimping leads to code violations or fire risk. Quality panels and proper grounding may cost more but pay off in reliability and warranty.

Estimating Your Project

Cost Estimation Methods

We quote projects per drop. Use our structured cabling cost calculator to get a ballpark before you call. Bundled items, like rack and device install or TDR relocation, are separate line items.

Rough ballpark:

• 01Cat6: $200 per drop, fully installed
• 02Cat6a: $325 depending on length or shielding
• 03Fiber backbone: $2,000–$80,000 depending on run length, strand count, and termination location

Average Pricing Examples

• 01Eyewear retail rollout (36 Cat6 drops per store): $8K–$12K per location, including travel, permits, rack install, grounding, termination, and testing.
• 02Medical facility buildout: Six-figure sums with 300 Cat6a drops, fiber backbone, coax, nurse call wiring, access control cabling, large racks, ladder trays, and project coordination.

Requesting Quotes

Always ask for itemized proposals. Verify how many drops are single vs. dual; what brand of cable is being used; whether fiber needs pulling; and whether testing and certification are included. Watch for hidden costs like permitting, travel, or overtime labor.

Planning for Future Growth

It's far cheaper to leave extra conduit or spare ports during install than to retrofit later. We recommend at least 10% spare capacity in patch panels and conduit.

DIY vs. Professional Installation

When DIY Makes Sense

For very small installs, two or three drops in a low-risk environment, DIY can work if the person knows ANSI/TIA termination, cable testing, and code compliance.

Risks of Improper Install

Bad terminations, mislabeled drops, cable damage, poor pathway access. Any of these can create intermittent failure, poor speeds, or code violations. DIY efforts often result in errors that cost more to fix later.

Value of Certified Installers

Hiring a pro ensures: correct cable type, proper installation methods, NEC compliance, testing and certification, and full documentation. You get peace of mind that your network will perform as expected, not just barely pass.

Frequently Asked Questions

What kind of cable is used in data centers? Mainly Cat6a or fiber, chosen for speed and distance.

How long does a cabling install take? A small install may take as little as a day. A 40-cable sports medicine clinic is a one-day job with the right crew and prep. Cable ran to a new rack, everything terminated, certified, and labeled, followed up by mounting and labeling a handful of APs. Larger installs, hundreds of drops, multiple floors, can stretch over several weeks, months, or even years depending on site coordination and project scope.

How often should cabling be tested? Perform testing at install and after any major network updates or building renovations.

Conclusion

Commercial data cabling isn't just wiring. It's the foundation of how your building communicates. From phones and Wi-Fi to access control and industrial systems, every device relies on clean, organized infrastructure to perform. Access control installs in particular benefit from access control composite cable, which bundles all door conductors into one pull and cuts labor significantly on multi-door projects.

Now you know:

• 01What commercial data cabling includes
• 02How structured systems work and why they matter
• 03Types of cable and when to use them
• 04Best practices around labeling, documentation, and installation
• 05What drives cost and how to get accurate estimates
• 06The ROI of hiring professionals over DIY

If you're planning a new install or upgrading existing infrastructure, even a modest office or a multi-building medical facility, call for a professional assessment. Plan for the future, stay code-compliant, and get a network that just works, today and for years to come.

Florida Building Code Requirements for Commercial Data Cabling

Commercial low-voltage cabling in Florida falls under Chapter 7 of the Florida Building Code (FBC), which adopts NFPA 70 (National Electrical Code) Article 800 for communications circuits. In Tampa Bay, installations must maintain a minimum 2-inch separation from power conductors unless using Type CM-rated or higher cable in approved raceways. The FBC also requires plenum-rated cable (CMP) in any air-handling space, including drop ceilings used for return air. Hillsborough and Pinellas counties both enforce bonding and grounding per Article 800.100, requiring a minimum #6 AWG grounding conductor connected to the building's electrical service grounding system. Permit requirements vary by jurisdiction: commercial projects over 50 data drops typically require a low-voltage permit and inspection before final occupancy approval.
