Conduit Sizing for Low-Voltage Sleeves and Stub-Ups
Size Matters
Imagine pulling Cat 6a for a new office, only to find a 3/4" stub-up that barely fits two cables when your drop needs four. Undersized conduit is a common, avoidable pain point in structured cabling, often due to poor planning or miscommunication. Proper conduit sizing ensures smooth installations, protects cables, and supports future upgrades. This guide simplifies conduit sizing for low-voltage cabling, helping you avoid delays, save costs, and build future-proof network infrastructure.
Why Conduit Sizing Matters for Low-Voltage Cabling
While conduit isn't always required for low-voltage systems, when it's used (especially for pathways through barriers or up from the slab), proper sizing ensures:
- 01Cable pulls go smoothly without kinking or binding
- 02Bend radius isn't violated
- 03Firestop assemblies can be properly sealed
- 04You have room for adds, moves, and changes
The National Electrical Code (NEC), Chapter 9, Table 1, recommends that conduit fill not exceed 40% of the internal cross-sectional area when multiple cables are installed. This protects cable integrity and allows enough clearance for clean, damage-free pulls. We built free calculators for the most common conduit types used in low-voltage work: EMT conduit fill, PVC conduit fill, Cat6 conduit fill, fire sleeve fill, and a general low-voltage conduit fill calculator.
BICSI's Telecommunications Distribution Methods Manual (TDMM) takes it further, suggesting conduits no smaller than 1" for horizontal cabling and upsizing pathways by at least one trade size for long-term flexibility and minimal disruption.
Conduit Fill: Quick Reference
Application Purpose: Stub-Ups vs. Sleeves in Structured Cabling
The function of the conduit should inform how you size it for low-voltage cabling.
Stub-Ups
Stub-ups are vertical conduits that rise from a junction box to above the finished ceiling, typically feeding a single outlet location like a wall plate or furniture rough-in. When Cat 5e and Cat 6 were standard, squeezing extra cables into a 3/4" pipe was manageable. However, Cat 6a's larger outer diameter (OD) and stiffer construction eat up space quickly. Planning for future additions, like a phone, printer, or wireless access point (WAP), ensures you won't need to punch new holes or open walls later.

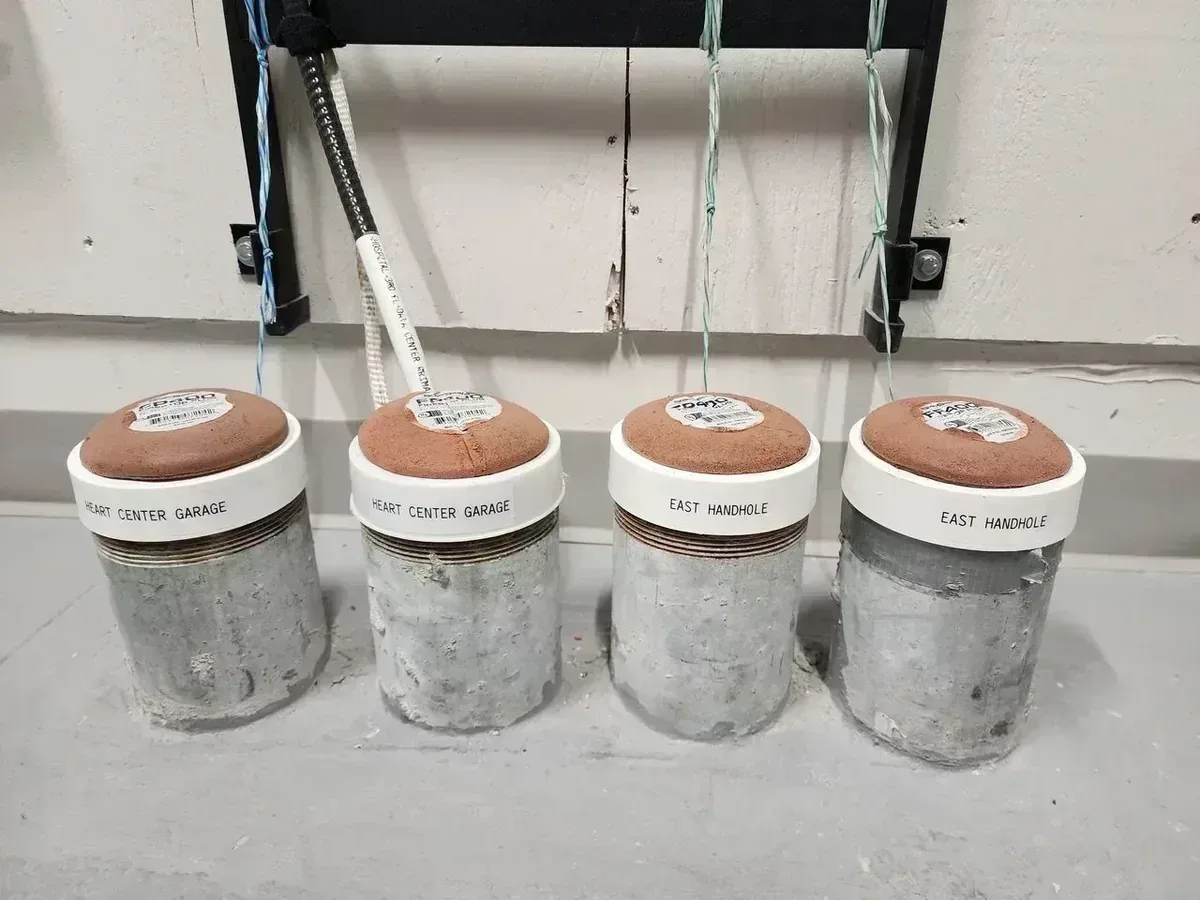

Sleeves
Sleeves are horizontal conduits used to pass cables through fire-rated walls, floors, or structural barriers. These should almost always be oversized because:
- 01They often serve multiple rooms or workstations
- 02They handle mixed cable types (Cat 6a, coax, fiber, control wiring)
- 03They're reused during future cabling upgrades
- 04Once sealed with firestop, they're difficult to modify without major disruption
Unlike stub-ups, which support a few cables per location, sleeves act as permanent network infrastructure. Proper sizing allows network expansion without reopening walls or adding surface conduit.
Industry Standards for Structured Cabling Conduit
NEC (National Electrical Code)
- 01Chapter 9, Table 1: Limits conduit fill to 40% for multiple cables in a raceway
- 02Protects cable bend radius and allows airflow
- 03Fill is based on the internal cross-sectional area of the conduit and the OD of each cable
BICSI Guidelines
- 01BICSI TDMM: Recommends 1" minimum conduit for horizontal cabling
- 02100 ft max conduit length without a pull box
- 03No more than two 90° bends per run
- 04Always include pull string or mule tape
AHCA (Florida Agency for Health Care Administration)
- 01For telecom infrastructure in hospitals and healthcare facilities
- 021 1/2" minimum for riser sleeves
- 032" horizontal sleeves recommended for multi-system pathways
- 04Firestopping is required where sleeves penetrate rated assemblies
- 05Aligns with BICSI but is more conservative due to critical systems
Final Thoughts
Proper conduit sizing for low-voltage cabling prevents installation headaches, protects cables, and ensures your network can grow with your business. Undersized conduits lead to damaged cables, code violations, and expensive fixes, issues easily avoided with upfront planning. From healthcare to data centers, treating conduit as critical network infrastructure saves time, reduces rework costs, and supports future upgrades. If you want a broader look at what changed in the code cycle, our breakdown of NEC 2026 low voltage cabling changes covers the specific articles that affect conduit fill, cable support, and fire-rated penetrations.
References
- 01TIA/EIA-568: Commercial Building Telecommunications Cabling Standard. Telecommunications Industry Association.
- 02BICSI Telecommunications Distribution Methods Manual (TDMM): Guidelines for cabling systems. BICSI, 14th Edition.
- 03NFPA 70 (NEC): National Electrical Code, Chapter 9. National Fire Protection Association, 2023.
Frequently Asked Questions
Frequently Asked Questions
NEC Chapter 9, Table 1 limits conduit fill to 40% of the internal cross-sectional area when three or more cables are installed. For two cables the limit is 31%, and for one cable it's 53%. These percentages protect cable bend radius during pulls and leave clearance for future cable additions. The calculation is based on the internal area of the conduit and the actual outer diameter of each cable — not the nominal conduit size.
BICSI TDMM recommends a minimum 1-inch conduit for horizontal cabling stub-ups. For a single outlet location serving four Cat 6a drops, a 1-inch EMT provides adequate fill headroom at 40%. If future expansion is likely (a WAP, second phone, or additional workstation drop), a 1.25-inch stub-up is worth the minor upcharge during rough-in. Upsizing by one trade size at stub-up costs a few dollars in material but avoids opening finished ceilings later.
For most commercial low-voltage applications, a 2-inch sleeve through fire-rated walls handles mixed cable bundles (Cat 6a, coax, fiber, control wiring) and leaves room for future adds. Florida healthcare facilities under AHCA guidelines require 2-inch minimum for multi-system horizontal sleeves and 1.5-inch minimum for riser penetrations. Sleeves must be firestopped with listed materials — the firestop assembly limits future cable addition and is why oversizing at initial installation matters.
A 3/4-inch EMT has an internal area of approximately 0.533 square inches. At 40% fill, usable area is about 0.213 square inches. Cat 6a cable at roughly 7.5mm OD has a cross-section of about 0.027 square inches, allowing approximately 7 cables by math alone — but practical pull limits and cable stiffness typically reduce this to 4-5 cables for a clean installation. Cat 6a's larger diameter and stiffer construction make it significantly harder to pull in tight conduit compared to Cat 5e or Cat 6.
The 40% fill rule from NEC Chapter 9, Table 1 applies to low-voltage cabling installed in electrical metallic tubing (EMT) and other raceways. However, NEC Chapter 9 fill tables don't map cleanly to bundled low-voltage cable because they were designed for individual power conductors. BICSI guidelines address this gap and provide more practical guidance for telecommunications cable bundles. When Class 2 or Class 3 circuits are installed in EMT, NEC Section 300.17 applies for fill calculations.
BICSI TDMM recommends a maximum conduit run length of 100 feet (30 meters) without a pull box or pull point. Additionally, no more than two 90-degree bends should be placed between pull points. Including a mule tape or pull string during rough-in conduit installation is also a BICSI best practice — it eliminates the need to fish a pull line through a sealed conduit later and significantly reduces installation labor on occupied buildings.
Florida's Agency for Health Care Administration (AHCA) sets telecom infrastructure requirements for licensed healthcare facilities that go beyond base BICSI guidelines. AHCA requires a minimum 1.5-inch conduit for riser sleeves and 2-inch conduit for horizontal multi-system pathways. All sleeve penetrations through fire-rated assemblies must be firestopped with listed assemblies. These requirements align with BICSI but are more conservative due to the critical nature of healthcare communications systems.
