Choosing the Correct Communications Cable for Your Environment

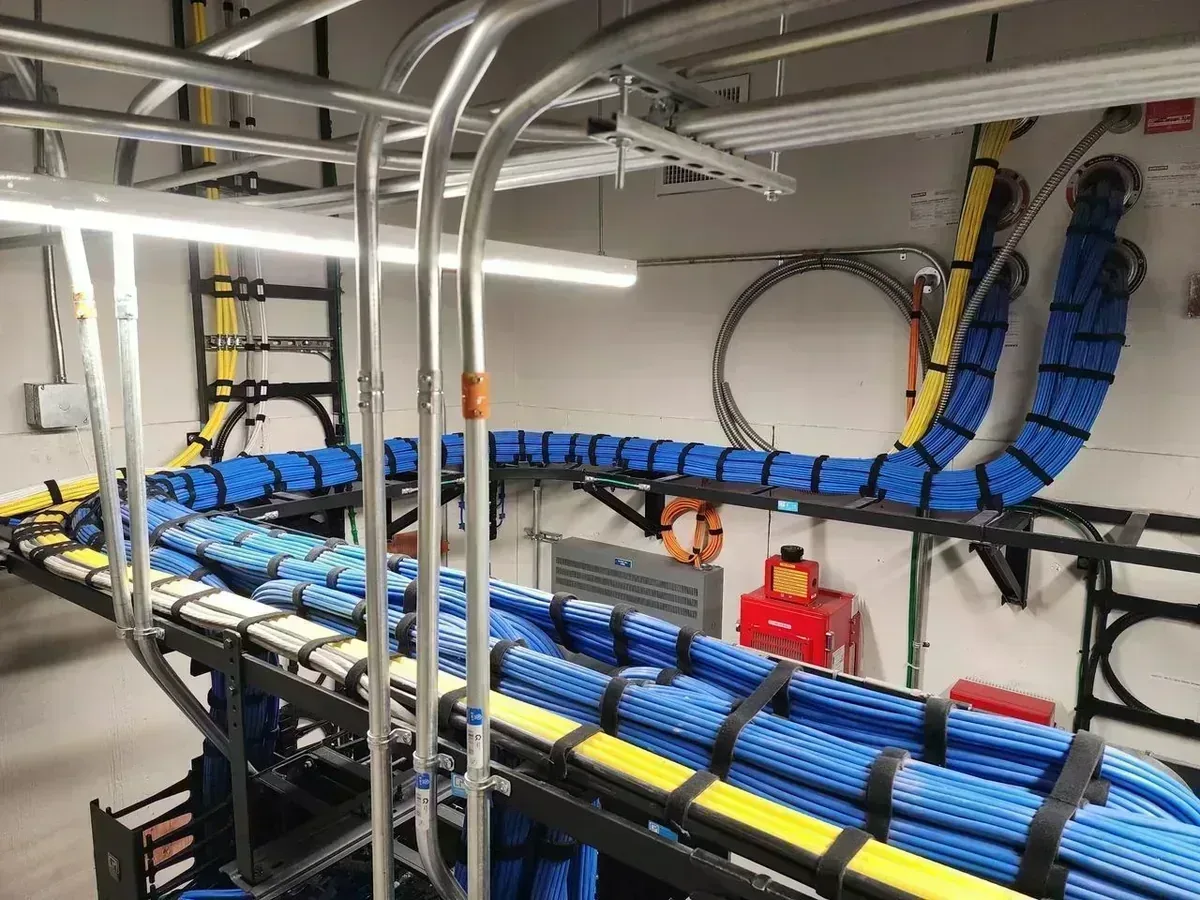

Imagine installing a state-of-the-art structured cabling solution only to fail an inspection because of one wrong cable choice. Rework, due to a miss use of cable costs low-voltage contracts thousands of dollars each year. Choosing the right communication cable isn't just about performance. It's about safety, compliance, and avoiding costly mistakes. In the world of low-voltage wiring and structured cabling, selecting the appropriate cable jacket, whether for indoor, outdoor, direct burial, riser, plenum, or indoor/outdoor (I/O) environments, is critical. This article explores cable jacket ratings, their proper applications, and the risks of common misuses, helping installers deliver safer, code-compliant systems.
Understanding Jacket Ratings
What Are Cable Jacket Ratings?
Cable jackets do more than protect the conductors inside; they determine where a cable can be legally and safely installed. Governed by the National Electrical Code (NEC) Article 800, jacket ratings ensure cables meet fire safety, environmental durability, and signal integrity requirements. Each environment (office ceilings, wall cavities, riser shafts, or buried conduits) has unique risks, and using the wrong cable can lead to performance issues, code violations, or safety hazards.
Why They Matter
Beyond fire safety, jackets shield against moisture, UV exposure, and physical abrasion, ensuring reliable signal transmission over a cable's lifespan. Mismatching a cable to its environment, such as using an indoor cable outdoors, can degrade performance, trigger inspection failures, or even pose life-threatening risks in a fire.
Defining Plenum Air Spaces
A plenum is any building space used for air circulation in heating, ventilation, or air conditioning (HVAC) systems, such as above drop ceilings or under raised floors in offices, schools, or hospitals. These areas are critical because fire or toxic smoke can spread rapidly through HVAC systems (NEC 300.22(C)). Cables in plenum spaces must have low-flame, low-smoke jackets to minimize risks, making proper selection essential.
Cable Jacket Ratings: Quick Guide
NEC Article 800 compliance
Cable Jacket Types and Their Uses
Riser-Rated Cable (CMR)
CMR (Communications Multipurpose Riser) cable is designed to prevent fire from traveling vertically between floors in riser shafts or elevator shafts (NEC 800.154(B)). Its moderately flame-resistant jacket is suitable for indoor vertical runs but not for plenum spaces or outdoor exposure.
Plenum-Rated Cable (CMP)
CMP (Communications Multipurpose Plenum) cable is the gold standard for fire safety, using low-flame, low-smoke materials to minimize toxic fume risks in air return spaces like drop ceilings or raised floors (NEC 800.154(A), 300.22(C)). It's essential for high-traffic buildings but is typically 20-30% more expensive than CMR.
Indoor/Outdoor (I/O) Cable
Indoor/Outdoor (I/O) cable combines UV and moisture resistance with flame ratings for riser or plenum use. It's ideal for transitions, such as from rooftop antennas to telecom rooms. Or for semi-protected areas like parking garages, or where cables are run through exposed conduit before entering a building.
Direct Burial Cable
Direct burial cables are built for underground installations without conduit, featuring rugged jackets and water-blocking features to withstand moisture and soil pressure (NEC 800.113(B), Table 300.5). They're perfect for campus networks but must transition to indoor-rated cables shortly after entering a building.
Cable Construction and Environmental Suitability
The performance and safety of communication cables in their designated environments depend heavily on their construction. Each cable type (CMR, CMP, Indoor/Outdoor, and Direct Burial) is engineered with specific materials and designs to meet NEC standards and withstand environmental challenges. Below, we explore the technical details of each cable's construction and how they align with their intended use.
Cable Construction
CMR (Riser-Rated) Cable
Construction: CMR cables typically feature a polyvinyl chloride (PVC) jacket with moderate flame-retardant additives, such as halogenated compounds, to resist fire propagation. The inner conductors, often copper or copper-clad aluminum, are insulated with high-density polyethylene (HDPE) to maintain signal integrity. Twisted pair designs (e.g., Cat6 or Cat6a) include separators or splines to reduce crosstalk.
Environmental Suitability: The flame-retardant PVC jacket is designed to prevent fire from spreading vertically between floors in riser shafts (NEC 800.154(B)). While durable in indoor settings, the jacket lacks UV or moisture resistance, making it unsuitable for outdoor or plenum use. The HDPE insulation ensures stable electrical performance in vertical runs, where cables may face physical stress.
CMP (Plenum-Rated) Cable
Construction: CMP cables use low-smoke, flame-resistant jackets made from fluorinated ethylene propylene (FEP) or specialized low-smoke PVC. These materials release minimal toxic fumes when exposed to fire. The conductors are insulated with FEP or similar fluoropolymers, which offer excellent dielectric properties and heat resistance. The cable's core is tightly twisted to maintain signal quality in high-density installations.
Environmental Suitability: The FEP jacket and insulation meet stringent fire safety requirements for plenum spaces (NEC 800.154(A), 300.22(C)), where air circulation demands low flame spread and smoke production. These materials withstand high temperatures in HVAC environments but are not UV- or water-resistant, limiting CMP cables to indoor air return spaces like drop ceilings or raised floors.
Indoor/Outdoor (I/O) Cable
Construction: I/O cables combine a UV-resistant polyethylene (PE) or PVC outer jacket with flame-retardant inner layers that meet riser or plenum ratings. Many include water-blocking elements, such as gel-filled cores or dry water-swellable tapes, to prevent moisture ingress. Conductors are insulated with HDPE or FEP, and some designs incorporate shielding (e.g., foil or braid) for enhanced EMI protection.
Environmental Suitability: The dual-purpose design supports transitions between indoor and outdoor environments (NEC 800.113(A-C)). The UV-resistant PE jacket withstands sunlight exposure, while water-blocking features protect against rain or humidity, ideal for rooftop runs or outdoor-to-indoor transitions. Flame-retardant layers ensure compliance in riser or plenum spaces, making I/O cables versatile for mixed installations.
Direct Burial Cable
Construction: Direct burial cables feature rugged, high-density polyethylene (HDPE) jackets with UV and abrasion resistance. They often include water-blocking gel or dry tape to seal against groundwater. Conductors are insulated with HDPE, and some cables have an armored layer (e.g., corrugated steel tape) for protection against physical damage. The core may include a central strength member to resist tensile stress during burial.
Environmental Suitability: The HDPE jacket and water-blocking features enable installation underground without conduit (NEC 800.113(B), Table 300.5). The heavy-duty construction resists moisture, soil pressure, and temperature fluctuations, ensuring long-term performance in buried runs, such as campus networks. However, the lack of flame-retardant properties limits indoor use to short entry points before transitioning to rated cables.
These construction differences highlight why selecting the correct cable type is critical. Mismatched materials, such as using CMR's PVC jacket in a plenum or CMP's FEP in outdoor settings, can lead to performance degradation, safety hazards, or code violations.
Three Most Common and Costly Cable Misuses
Cable installation scenarios are rarely one-size-fits-all, and misjudging environmental requirements can lead to safety hazards, failed inspections, and expensive rework. Below are three common mistakes and how to avoid them:
1. Using CMR in a Plenum Space
Mistake: In a high-rise retrofit, if the installer ran CMR cable above a drop ceiling used as an air return. The entire installation could fail inspection because CMR doesn't meet the low-smoke, low-flame requirements of plenum spaces (NEC 300.22(C)).
Why It Matters: CMP cable is mandatory in plenums to prevent toxic smoke from spreading via HVAC systems. Using CMR risks fines, rework, and liability in a fire.
Fix: Always verify if a ceiling or floor is a plenum space and use CMP cable when necessary.
2. Using CMR or CMP Cables Outdoors
Mistake: A plenum-rated Cat 6 cable on a rooftop can degrade after one season, causing signal loss and equipment damage due to UV and moisture exposure.
Why It Matters: Indoor-rated cables (CMR/CMP) aren't built for weather exposure (NEC 800.113(B)). UV rays and water ingress ruin jackets, leading to costly failures.
Fix: Use outdoor-rated or I/O cables with UV and moisture resistance.
3. Overextending Direct Burial Cable Indoors
Mistake: A direct burial cable ran 90 feet through a hallway ceiling after entering a building, violating NEC flame-spread rules and failing inspection.
Why It Matters: Direct burial cables lack indoor flame ratings and should transition to CMR/CMP within 50 feet of entering a structure (NEC Table 300.5).
Fix: Terminate the direct burial cable at a junction box and switch to indoor-rated cable.
Final Thoughts
Choosing the right communication cable goes beyond matching category ratings like Cat5e or Cat6a. It's about ensuring safety, compliance, and performance. By understanding NEC Article 800, checking manufacturer specifications, and consulting local codes, installers can avoid costly mistakes and deliver reliable systems. Unsure about a mixed environment, like a rooftop-to-plenum run? Reach out to a certified electrician or comment below for advice. Get it right the first time to save time, money, and potentially lives.
Frequently Asked Questions
Frequently Asked Questions
CMP stands for Communications Multipurpose Plenum. It designates a cable jacket made from fluorinated ethylene propylene (FEP) or low-smoke PVC that meets NFPA 262 flame spread and smoke generation limits. CMP is required by NEC 800.154(A) and 300.22(C) for any cable installed in building spaces used as HVAC air plenums, such as above suspended ceilings or below raised floors.
CMR (riser-rated) cable uses a standard PVC jacket that resists vertical flame spread between floors but is not rated for low smoke output. CMP cable uses FEP or low-smoke materials and is rated for both flame and smoke in air-handling spaces. CMP is a higher rating and can substitute for CMR, but CMR cannot be used where CMP is required. CMP typically costs 20-30% more than CMR.
No. CMR and CMP jackets use PVC that lacks UV resistance and water-blocking construction. Exposure to sunlight and moisture degrades the jacket, eventually breaking down insulation and causing signal loss or shorts. NEC 800.113(B) requires outdoor or direct burial cable for runs exposed to weather. Transition to indoor-rated cable within the building using a weatherproof junction or conduit entry point.
NEC Table 300.5 permits direct burial cable to continue indoors for a maximum of 50 feet after entering the building before it must transition to CMR or CMP rated cable. Beyond 50 feet, the cable's heavy-duty HDPE jacket is not compliant with indoor flame-spread requirements. The transition is typically made at a junction box or enclosure near the building entry point.
Indoor/Outdoor cable combines UV-resistant PE outer jacketing with inner layers rated for riser or plenum use. It eliminates splice points at building transitions — useful for rooftop antenna runs, parking garage conduits, or any pathway that moves between exterior and interior environments. The dual rating means one cable can legally run from outside into a riser shaft without cutting and splicing at the wall.
Inspectors enforcing NEC Article 800 can fail the installation and require full cable replacement — not just the flagged sections. In occupied buildings this means cutting open finished ceilings, re-pulling cable, and redoing firestop at rated penetrations. The remediation cost commonly runs several times the original installation cost, plus the project delay impacts tenant occupancy and contractor liability.
NEC Article 800 governs communications wire and cable including twisted pair, but coaxial cable falls under Article 820 and fiber optic cable falls under Article 770. Each article has its own jacket rating designations — for example, OFNP (optical fiber nonconductive plenum) for fiber in air-handling spaces, and CATVP for plenum-rated coax. The underlying installation principles are the same: match the jacket rating to the environment.
