Parts of a Fiber Optic Network
Fiber optic networks are the backbone of modern connectivity, delivering blazing-fast, reliable data transmission for businesses, data centers, and telecommunications. Using light to carry data, these networks outperform traditional copper systems with higher bandwidth, longer distances, and immunity to interference. Governed by industry standards, they ensure reliable performance for applications like 5G, cloud computing, and video streaming. This guide explores the essential components of a fiber optic network, with a focus on cable types, connectors, and other critical elements, presented with technical authority and an engaging format for readers new to the topic.

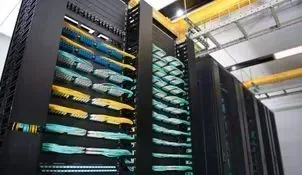

Fiber Optic Network Components
1. Fiber Optic Cables: The Network's Data Highways
Fiber optic cables transmit data as pulses of light through glass or plastic fibers, offering unmatched speed and reliability. They come in various types, each suited for specific use cases, with single-mode and multimode fibers being the most common.
Types of Cables:
- 01Single Mode (SM): Features a narrow core (8-10 microns) that allows a single light path, enabling long-distance transmission (up to 40 km or more) with minimal signal loss. Ideal for telecommunications, internet backbones, and wide-area networks, SM supports high-bandwidth applications over vast distances but requires more expensive transceivers due to precise laser alignment.
- 02Multimode (MM): Has a larger core (50-62.5 microns) that allows multiple light paths, making it suitable for shorter distances (up to 2 km). MM is cost-effective for data centers, campus networks, and local area networks (LANs), using less expensive LED or VCSEL light sources. However, it experiences higher signal dispersion, limiting its range compared to SM.
- 03Specialized Cables: Armored cables withstand harsh environments (e.g., outdoor or industrial settings), plenum-rated cables meet fire safety requirements for air-handling spaces, and loose-tube cables protect fibers in outdoor installations exposed to moisture or temperature changes.
SM vs. MM Comparison:
- 01Distance: SM excels for long-haul (e.g., city-to-city telecom), while MM is better for short-range (e.g., within a building or campus).
- 02Bandwidth: SM supports higher bandwidth over longer distances; MM handles high data rates (e.g., 10-100 Gbps) but only for shorter runs.
- 03Cost: MM is more affordable due to cheaper light sources and simpler installation, while SM's precision components increase costs.
- 04Use Case: Choose SM for telecom or long-distance needs; opt for MM for data centers or enterprise LANs.
Governing Standards:
- 01TIA/EIA-568-B: Guides cable performance for commercial buildings (e.g., OM3/OM4 for multimode, OS2 for single mode).
- 02NEC (NFPA 70, Article 770): Requires fire-rated cables (e.g., OFNP for plenum spaces) for safety.
Fiber optic cables are the foundation of high-speed networks, tailored to meet diverse distance, cost, and performance needs.
2. Connectors: The Network's Precision Links
Connectors terminate fiber optic cables, ensuring low-loss connections between cables and devices like switches or routers. They align fiber cores precisely to maintain signal integrity, with different types offering unique advantages.
Common Connector Types:
- 01SC (Subscriber Connector): A durable, push-pull connector with a square body, widely used in telecom and data centers for its reliability and ease of use.
- 02LC (Lucent Connector): A compact, high-density connector ideal for space-constrained applications like high-speed transceivers in data centers.
- 03MPO/MTP: Multi-fiber connectors supporting 12 or 24 fibers, designed for high-bandwidth applications like 40/100 Gbps Ethernet in large-scale networks.
UPC vs. APC Connectors:
- 01UPC (Ultra Physical Contact): Features a flat, polished end-face for low insertion loss (≤0.3 dB) and good performance in most applications. Common in data centers and enterprise networks, UPC connectors are cost-effective but can have higher back-reflection (-50 dB), which may affect analog signals.
- 02APC (Angled Physical Contact): Has an 8-degree angled polish to minimize back-reflection (-60 dB or better), making it ideal for high-sensitivity applications like telecom, CATV, or long-haul networks. APC connectors are slightly more expensive and require compatible mating to avoid signal loss.
- 03Comparison: Choose UPC for cost-effective, general-purpose use (e.g., LANs, data centers); opt for APC in applications sensitive to reflection, like fiber-to-the-home (FTTH) or video transmission.
Governing Standards:
- 01TIA-604 (FOCIS): Ensures connector interoperability and performance.
- 02TIA/EIA-568-B: Recommends connector types and polarity for structured cabling.
Connectors are essential for flexible, scalable networks, with UPC and APC options catering to specific performance needs.
3. Optical Transceivers: The Network's Signal Converters
Optical transceivers bridge fiber optic cables and network devices by converting electrical signals to optical signals (and vice versa). They determine the network's speed and range, making them critical for performance.
Key Types:
- 01SFP (Small Form-Factor Pluggable): Compact modules supporting 1 Gbps to 10 Gbps, used in enterprise networks for flexibility.
- 02QSFP (Quad SFP): High-density transceivers for 40 Gbps to 400 Gbps, common in data centers for high-bandwidth needs.
- 03CFP/CXP: Designed for ultra-high-speed applications (100 Gbps+), used in large-scale telecom networks.
Governing Standards:
- 01IEEE 802.3: Defines Ethernet standards for transceivers (e.g., 10GBASE-SR for multimode).
- 02MSA (Multi-Source Agreements): Ensures vendor interoperability for SFP, QSFP, and other modules.
Transceivers enable reliable integration of fiber optics with hardware, supporting a wide range of network applications.
4. Light Interface Units (LIU): The Network's Connection Hubs
Light Interface Units (LIUs) serve as centralized points for managing fiber optic connections, terminations, and splices. They ensure organized, accessible, and protected connections within the network, often used in telecommunications rooms or data centers.
Key Components:
- 01LIU Panels: Rack- or wall-mounted units that house fiber terminations, splices, and patch cords, enabling easy access for maintenance and reconfiguration.
- 02Splice Trays: Organize and protect fiber splices, ensuring low-loss connections (e.g., fusion splices with ≤0.1 dB loss).
- 03Cable Management Systems: Trays, guides, and strain relief to maintain proper bend radius (10x cable diameter) and prevent signal degradation.
Governing Standards:
- 01TIA/EIA-568-B: Specifies configurations for structured cabling terminations.
- 02TIA-606: Requires clear labeling of all connections and splices for easy identification and maintenance.
LIUs simplify network management, speed up upgrades, and protect critical connections, making them essential for efficient fiber deployments.
5. Testing and Maintenance Equipment: The Network's Quality Assurance
Testing and maintenance equipment verifies the performance of fiber optic networks, ensuring signal quality and identifying faults.
Key Tools:
- 01Optical Time-Domain Reflectometer (OTDR): Measures cable length, loss, and locates faults like breaks or bends.
- 02Power Meters and Light Sources: Test insertion loss and signal strength for compliance.
- 03Cleaning Kits: Remove dust from connectors to prevent signal degradation.
Governing Standards:
- 01TIA-526: Defines test procedures for optical loss.
- 02IEC 61300: Specifies fiber optic testing and cleaning methods.
Regular testing and maintenance ensure optimal network performance and longevity.
Why Fiber Optic Networks Matter for Businesses
Fiber optic networks deliver unmatched speed, reliability, and scalability, supporting modern applications like 5G, IoT, and cloud computing. Their ability to handle high bandwidth, long distances, and interference-free transmission makes them essential for digital transformation.
Key Benefits:
- 01High Bandwidth: Supports 10 Gbps to 400 Gbps for data-intensive applications.
- 02Long-Distance Capability: Transmits data over tens of kilometers with minimal loss.
- 03Reliability: Immune to electromagnetic interference, reducing downtime.
- 04Future-Proofing: Supports emerging technologies like Wi-Fi 7 and edge computing.
- 05Versatility: Adapts to diverse environments with specialized cables and components.
Fiber optic networks equip businesses to stay connected and competitive in a data-driven world.
References
- 01TIA/EIA-568: Commercial Building Telecommunications Cabling Standard. Telecommunications Industry Association.
- 02ISO/IEC 11801: Information Technology – Generic Cabling for Customer Premises. International Organization for Standardization.
- 03NFPA 70 (NEC): National Electrical Code, Article 770. National Fire Protection Association, 2023.
- 04BICSI Information Technology Systems Installation Methods Manual (ITSIMM): Provides guidelines for fiber optic installation and testing. BICSI, 7th Edition.
Frequently Asked Questions
Frequently Asked Questions
Single-mode fiber has a 9-micron core that allows only one light path, enabling runs of 40 km or more with minimal signal loss. Multimode fiber has a 50 or 62.5-micron core that supports multiple light paths but is limited to roughly 2 km before dispersion degrades signal quality. Single-mode requires more expensive laser-based transceivers; multimode works with less expensive LED or VCSEL sources and is the standard for in-building and campus runs.
LC (Lucent Connector) is the dominant connector in data centers and enterprise networks due to its compact form factor and compatibility with SFP transceivers. SC connectors are common in older telecom installations. MPO/MTP connectors are used for 40G and 100G parallel optic links requiring 12 or 24 fiber ribbons. APC connectors (green housing, 8-degree polish) are specified for CATV, FTTH, and any application sensitive to back-reflection.
An SFP (Small Form-factor Pluggable) transceiver is a hot-swappable module that converts electrical signals from a switch or router into optical signals for transmission over fiber. SFP handles 1-10 Gbps and uses LC connectors. QSFP (Quad SFP) modules support 40-400 Gbps for high-density data center interconnects. The transceiver type must match both the switch port and the fiber type — a multimode transceiver will not perform correctly on single-mode fiber.
An Optical Time-Domain Reflectometer (OTDR) sends a series of light pulses into a fiber and measures the reflected light to calculate loss, event locations, and link length. It's the primary tool for verifying splice quality (fusion splices should measure under 0.1 dB) and locating faults like breaks, bends, or dirty connectors. TIA-526 defines the test procedures. OTDR test results are typically required as part of the as-built documentation package on commercial cabling projects.
TIA-568.3-D recognizes OM3 (50-micron, 2000 MHz·km bandwidth) and OM4 (50-micron, 4700 MHz·km) as the multimode standards for horizontal and backbone cabling in commercial buildings. OM5 is a newer wideband multimode specification for wavelength-division multiplexing. For single-mode, OS2 (9-micron, ITU-T G.652.D compliant) is the standard for backbone and inter-building runs. OM1 (62.5-micron) is a legacy type not recommended for new installations.
Most fiber optic cable manufacturers specify a minimum bend radius of 10 times the cable outer diameter under no-load (static) conditions, and 20 times the outer diameter under pull tension. Violating bend radius creates microbend losses that increase insertion loss and can be permanent. Cable management in LIU panels includes radius limiters and slack spools specifically to prevent bends below specification during patching and future moves.
NEC Article 770 governs optical fiber cables in Florida. OFNP (optical fiber nonconductive plenum) is required for fiber runs in air-handling spaces above suspended ceilings or below raised floors. OFNR (riser-rated) is required for vertical runs through floor penetrations. These ratings appear on the cable jacket and are enforced during Florida Building Code inspections the same as CMR/CMP requirements for copper cable.
Fiber is typically spliced using fusion splicing, a process where two fiber ends are arc-welded together with a fusion splicer. A quality fusion splice averages under 0.1 dB insertion loss and is the preferred method for backbone and outdoor-to-indoor transitions. Mechanical splicing (physical alignment with index-matching gel) is a faster field option but adds 0.2-0.5 dB per splice. Splice cost varies significantly by project, number of fibers, and access conditions.
