Built by Licensed Low-Voltage Contractors

All resistance values and fill calculations are derived from NEC-published conductor data. PoE thresholds follow IEEE 802.3 standards. Fire alarm circuit limits reference NFPA 72 and UL 864 requirements. Cable specifications align with TIA-568 structured cabling standards. Device presets and wire types reflect real-world field data from commercial low-voltage installations across Florida.

Estimates based on NEC, NFPA, and IEEE standards. For reference only. Consult a licensed professional for critical design decisions.

Select Application(click one)
Circuit Configuration
Devices

Enter one-way distance — we calculate the round trip automatically.

Select inputs & calculate

Reference Standards

Voltage Drop Thresholds

Maximum recommended drop varies by system type and applicable code. PoE uses minimum PD voltage rather than a percentage threshold.

3%

NEC Branch Circuit

NEC 210.19(A)

Recommended max

5%

NEC Total (Feeder + Branch)

NEC 215.2(A)

Service to outlet

10%

Fire Alarm NAC

NFPA 72 / UL 864

Start at 20.4V

~15%

PoE (802.3at)

IEEE 802.3

Min 42.5V at PD

Technical Reference

Low-Voltage Power Guide

Practical guidance on voltage drop calculations for PoE, fire alarm, access control, and general low-voltage circuits.

01

Why Voltage Drop Matters in Low-Voltage Systems

A 3% voltage drop on a 120V circuit costs you 3.6 volts, barely noticeable. That same 3% drop on a 12V access control circuit costs 0.36 volts, which can mean the difference between a lock releasing and a door staying stuck. Low-voltage systems operate on thin margins, making voltage drop calculations critical for any run over 50 feet.

02

Understanding Multi-Device Circuits

Most low-voltage circuits power multiple devices: 8 cameras on a PoE switch, 15 horn/strobes on a fire alarm NAC loop, or 4 door locks on a power supply. Voltage drop is cumulative: the first device on the run gets clean power, but the last device in the chain sees the sum of all upstream drops. Our multi-device mode calculates the exact voltage at every device location.

03

PoE Cable Selection and Distance Limits

PoE is limited to 100 meters (328 feet) by Ethernet standards, but voltage drop can cause failures well before that limit. Cat5e (24 AWG) has 26% higher resistance than Cat6 (23 AWG), which matters significantly at PoE++ power levels (60-90W). CCA (copper-clad aluminum) cable, common in budget installations, adds another 40% resistance penalty.

04

NEC and NFPA Guidelines for Voltage Drop

NEC Article 210.19(A) recommends no more than 3% drop on branch circuits and 5% total from service entrance to outlet. Fire alarm systems under NFPA 72 allow up to 10% drop on NAC circuits, using the panel's minimum output voltage (typically 20.4V per UL 864) as the starting point, not the nominal 24V. Access control manufacturers typically specify 10% maximum drop.

Common Questions

Frequently Asked Questions

When multiple PoE devices share a cable path — like IP cameras daisy-chained through switches or injectors — each segment carries the cumulative current of all downstream devices. This calculator's multi-device mode models exactly that: enter each device's distance from the source and its power draw, and the tool calculates per-segment voltage drop with cumulative current. The last device in the chain always sees the worst voltage — if it drops below 42.5V (802.3at minimum), you need to either upsize the home-run cable, add a midspan injector, or restructure the daisy chain into a star topology.

Each system has a different failure point. Fire alarm NAC circuits operate at 24VDC from the panel, and NFPA 72 requires notification appliances to receive at least 16V — so your maximum allowable drop is roughly 10% when calculated from the full-load supervision voltage of 20.4V. PoE (802.3at) requires a minimum of 42.5V at the powered device, allowing about 12.5V of drop from the 57V source — approximately 15%. Access control systems running 12VDC locks typically fail below 10.5V, so keep drop under 12%. This calculator pre-loads these thresholds when you select the application mode, so you don't have to look them up.

CCA cable has roughly 55-60% higher resistance than solid copper of the same gauge because the aluminum core has significantly higher resistivity. A 300-foot run of CCA Cat5e that would pass voltage drop requirements with solid copper may fail by a wide margin. This is especially dangerous with PoE systems — the cable may test fine for data connectivity but silently starve the powered device of voltage under load. This calculator includes a CCA cable option that uses adjusted resistance values, so you can see the real-world impact before you discover it during commissioning.

It depends on the constraint. If you’re locked into a cable path (existing conduit, building layout), upsizing wire gauge is your only option — dropping from 18 AWG to 14 AWG cuts resistance roughly in half. To pick the smallest gauge that still passes both the ampacity and the drop check, run the same numbers through our AWG wire size calculator; it sweeps every gauge instead of asking you to guess. If you have flexibility in equipment placement, shortening the run is often cheaper: moving a PoE switch from the main IDF to a satellite closet 50 feet closer to the cameras eliminates the problem without thicker cable.

Multi-lock circuits are the most common access control voltage drop failure. A single mag lock draws 250-500mA, but a circuit with four locks on a shared pair draws 1-2A total — and the last lock in the daisy chain sees voltage drop from all upstream devices plus its own. Use this calculator's multi-device mode: enter each lock's distance from the power supply and its current draw. If the farthest lock drops below 10.5V, you need to either run a heavier gauge home-run (14 AWG instead of 18 AWG) or split the circuit into two separate power supply outputs.

Yes — this is one of the most common field issues we see. A PoE+ switch delivers 30W at 57V per IEEE 802.3at, but if the cable run is long enough (or uses CCA cable), the voltage at the powered device drops below the 42.5V minimum. The device may boot intermittently, reboot under load, or refuse to power on entirely — and the switch may not report a clear error. The problem gets worse at higher power levels (802.3bt delivering 60-90W) because higher current means proportionally higher voltage drop across the same cable resistance.

Cite This Tool
APA Citation

TSS USA. (2026). Low-Voltage Voltage Drop Calculator. Retrieved from https://tssusa.net/voltage-drop-calculator/

Embed Link
<a href="https://tssusa.net/voltage-drop-calculator/" title="Low-Voltage Voltage Drop Calculator by TSS USA">Low-Voltage Voltage Drop Calculator - TSS USA</a>

Last Updated: February 17, 2026

Calculations use DC resistance values published at 20°C reference, derived from NEC Chapter 9 Table 8. PoE calculations follow IEEE 802.3af/at/bt standards for parallel pair current distribution. Fire alarm thresholds reference NFPA 72 and UL 864 minimum panel output voltages. Temperature correction uses copper's standard coefficient (α = 0.00393/°C) applied between ambient temperature and the 20°C reference. Multi-drop calculations model cumulative voltage drop across daisy-chained devices with per-segment current summation.

Need Help With Your Installation?

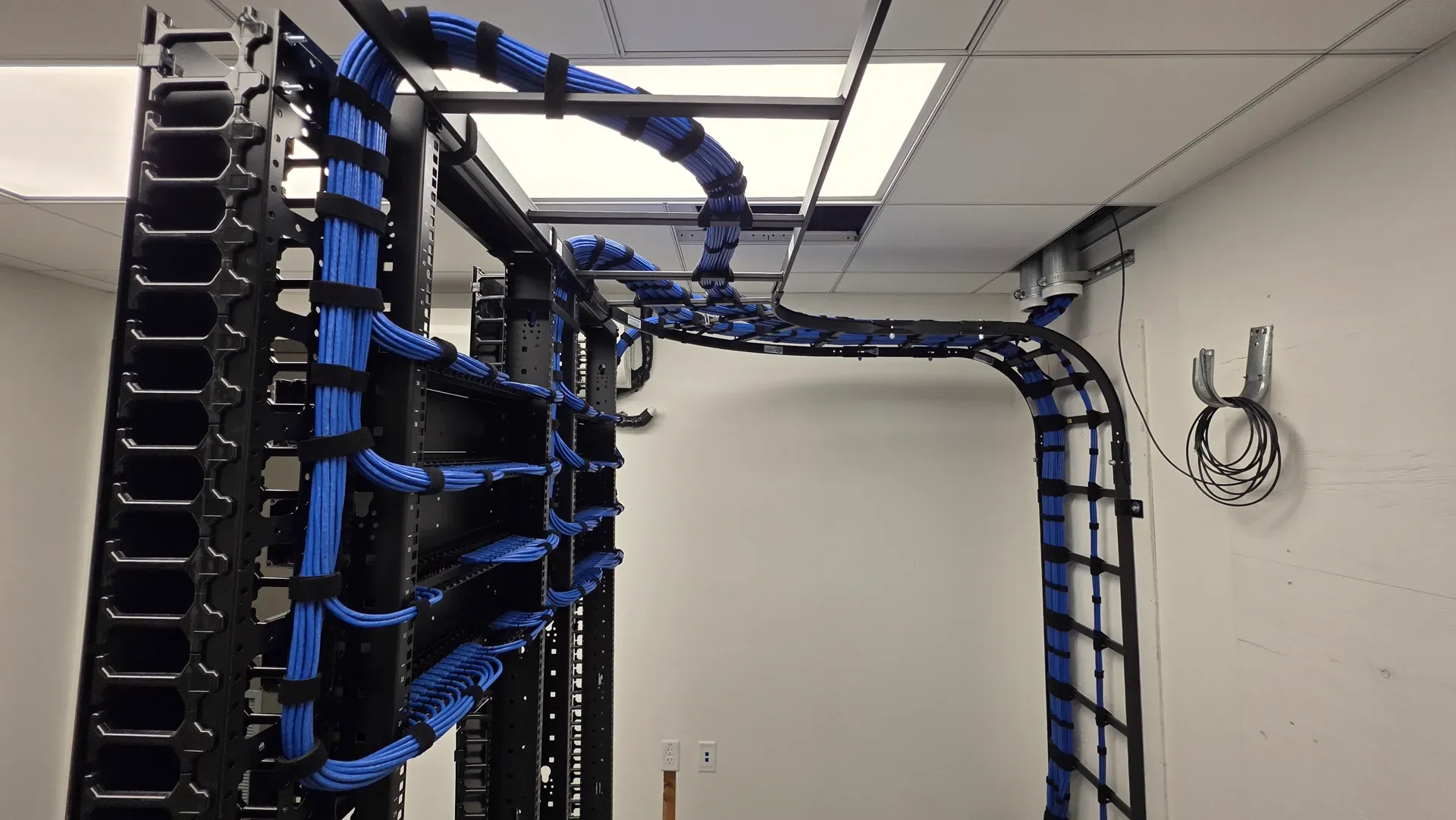

Our licensed low-voltage team can design and install PoE, fire alarm, access control, and cabling systems across Florida.
